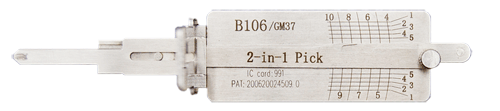

B106/GM37 2-In-1 Tool

Description

Reading Panel

Depths

1-5

Useage

Dr/Bt

Key Blanks

Ilco: B106/B107/B109/B111

Silca: B111

Keyway

B111 Keyway

Applications

Buick • Cadillac • Chevrolet • General Motors
Hummer • Oldsmobile • Pontiac • Saturn • Others

Notes

This tool is used in locks that have NO keyway wards.

B106/GM37 2-In-1 Tool Usage Notes

Buick
ModelYearsOpen DirectionNotes
Allure2005-2009CCW
Service Key:  Ilco: B106 • Silca: GM37  |  Tumblers:  Door: 3-9   Ignition: 3-9   Glove: 7-10
Encore2007-2015CCW
Tumbler Positions:  Door: 4-10     Ignition: 1-8     Glove: 7-10

Please keep in mind that some vehicles in this model range will have locks that contain wards (small metal protrusions that ride in the groves milled into the key blade). The B106/GM37 tool is designed to work on locks that DO NOT have wards in the lock’s keyway. If the B106/GM37 2-In-1 Tool does not enter the lock, it might be because there are wards present. If this is the case, use the B111 2-In-1 tool instead.

CW – Clockwise
CCW – Counter Clockwise
UAT – Unknown at this time
Cadillac
ModelYearsOpening DirectionNotes
BRX2009UAT
Tumbler Positions:  Door: 4-10     Ignition: 4-10     Glove: 7-10
CTS2008-2014UAT
Tumbler Positions:  Door: 3-10     Ignition: 2-10     Glove: 7-10
DTS2006-2011CW
Tumbler Positions:  Door: 2-8     Ignition: 3-10     Glove: 7-10
Escalade2007-2014CCW
Tumbler Positions:  Door: 3-10     Ignition: 2-8     Glove: 7-10
SRX2004-2009CCW
Tumbler Positions:  Door: 3-10     Ignition: 2-8     Glove: 7-10
SRS2007-2008UAT
Tumbler Positions:  Door: 3-10     Ignition: 2-8     Tailgate: 3-10     Glove: 7-10
SRS2010-2011UAT
Tumbler Positions:  Door: 3-10     Ignition: 2-10    Glove: 7-10
XTS2013-2015UAT
Tumbler Positions:  Door: 3-10     Ignition: 2-8     Glove: 7-10

Please keep in mind that some vehicles in this model range will have locks that contain wards (small metal protrusions that ride in the groves milled into the key blade). The B106/GM37 tool is designed to work on locks that DO NOT have wards in the lock’s keyway. If the B106/GM37 2-In-1 Tool does not enter the lock, it might be because there are wards present. If this is the case, use the B111 2-In-1 tool instead.

CW – Clockwise
CCW – Counter Clockwise
UAT – Unknown at this time
Chevrolet
ModelYearsOpening DirectionNotes
Avalanche2007-2013CCW
Tumbler Positions:  Door: 3-10     Ignition: 2-8     Glove: 7-10
Captiva2011-2014UAT
Tumbler Positions:  Door: 1-8     Ignition: 1-8     Glove: 5-8

Please keep in mind that some vehicles in this model range will have locks that contain wards (small metal protrusions that ride in the groves milled into the key blade). The B106/GM37 tool is designed to work on locks that DO NOT have wards in the lock’s keyway. If the B106/GM37 2-In-1 Tool does not enter the lock, it might be because there are wards present. If this is the case, use the B111 2-In-1 tool instead.

CW – Clockwise
CCW – Counter Clockwise
UAT – Unknown at this time

If you have tool information that is not present on this page, you can send it to us and we will gladly update the page. Use the link below to send us your submission.

Additional Tool Information Submission

Make Model Year
Buick Allure 2005 - 2009
Buick Enclave 2007 - 2016
Buick LeCrosse 2005 - 2009
Buick LuCerne 2006 - 2011
Buick Terraza 2007 - 2008
Cadillac CTS/CTS-V 2008 - 2013
Cadillac DTS 2007 - 2014
Cadillac Escalade 2008 - 2013
Cadillac STS 2008 - 2013
Cadillac XLR 2008 - 2013
Chevrolet Avalanche 2007 - 2013
Chevrolet Cobalt 2006 - 2010
Chevrolet Corvette 2005 - 2013
Chevrolet Equinox 2007 - 2009
Chevrolet Express 2008 - 2014
Chevrolet HHR 2006 - 2011
Chevrolet Impala 2006 - 2013
Chevrolet Malibu 2005 - 2012
Chevrolet Monticarlo 2006 - 2007
Chevrolet Silverado 2007 - 2013
Chevrolet Suburban 2007 - 2014
Chevrolet Tahoe 2007 - 2014
Chevrolet Traverse 2009 - 2015
